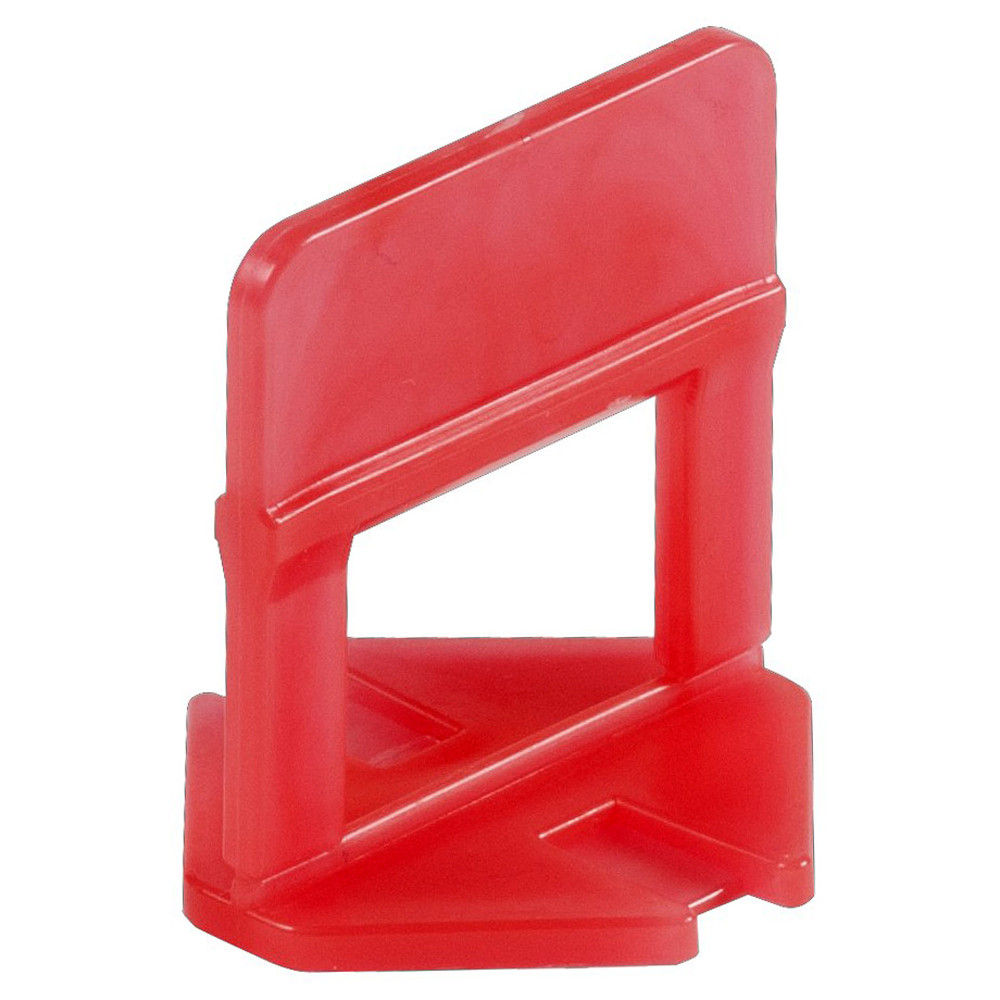

Raimondi Tile Leveling System Breakaway Red Clips, 1/8"

Achieve perfectly level tile installations with consistent 1/8" grout joints while virtually eliminating lippage on floors and walls.

Want Professional Tile Results Without the Guesswork?

Raimondi Breakaway Red Clips are an essential component of the trusted Raimondi Tile Leveling System, helping contractors install flatter floors, straighter walls, and uniform grout joints with less effort. Designed to create a consistent 1/8" grout joint, these disposable clips work with Raimondi wedges to hold adjacent tiles perfectly level while the mortar cures.

Uneven substrates, large-format tile, and slight variations in tile thickness can all contribute to lippage. Raimondi's leveling system minimizes these problems by maintaining even tile height throughout installation, reducing costly grinding and producing cleaner, more professional results.

Ideal for residential and commercial tile installations, Raimondi Breakaway Red Clips are easy to install, quick to remove, and compatible with Raimondi wedges and installation pliers.

What Installers Use Raimondi Red Clips For

• Large-format porcelain tile
• Ceramic tile floors
• Natural stone tile installation
• Wall tile installation
• Bathroom remodeling
• Kitchen backsplashes and flooring
• Commercial flooring projects
• Lippage prevention

Advantages

• Maintains a consistent 1/8" grout joint
• Helps eliminate tile lippage
• Produces flatter floors and walls
• Speeds installation while reducing grinding and rework
• Easy installation and removal
• Works with Raimondi wedges and installation pliers
• Excellent for large-format tile installations
• Cost-effective professional leveling solution

Specifications

• Grout Joint Width: 1/8"
• Compatible Tile Thickness: 1/8" (3 mm) to 1/2" (12 mm)
• Disposable breakaway clip
• Compatible with Raimondi wedges
• Designed for use with Raimondi installation pliers

How the Raimondi Tile Leveling System Works

1. Insert the Clip
   Spread thin-set mortar and position the clip beneath the tile along each edge.
2. Install the Wedge
   Insert the Raimondi wedge into the clip and tighten by hand or with Raimondi leveling pliers until adjacent tiles are perfectly level.
3. Remove After Curing
   Once the mortar has cured, strike or kick the clip parallel to the grout joint to cleanly separate the reusable wedge from the disposable clip.

Why Choose Raimondi Breakaway Red Clips?

Large-format tile and natural stone require precise installation to prevent uneven edges and costly callbacks. Raimondi's leveling system provides consistent tile alignment while maintaining a uniform grout joint, helping installers achieve professional-quality results faster and with less effort.

The 1/8" Red Clips are ideal for installations requiring wider grout joints than 1/16", while their engineered breakaway design allows for quick removal once the mortar has cured. When paired with Raimondi wedges and pliers, they deliver one of the industry's most trusted tile leveling systems.

Whether you're installing porcelain flooring, natural stone walls, or commercial tile projects, Raimondi Breakaway Red Clips help produce flat, beautiful tile installations every time.

BB Industries has you covered!

Frequently Asked Questions

What grout joint size do these clips create?

These clips are designed to maintain a consistent 1/8-inch grout joint.

What tile thicknesses are supported?

They accommodate tile thicknesses from 1/8 inch (3 mm) up to 1/2 inch (12 mm).

Are the clips reusable?

No. The clips are designed to break away after installation. The Raimondi wedges are reusable.

Do I need Raimondi installation pliers?

Raimondi pliers are recommended because they provide fast, consistent tension when inserting the wedges and improve installation speed.

How are the clips removed?

After the mortar cures, simply kick or strike the clip parallel to the grout joint to break it cleanly at its designed break point.
