Raimondi Tile Leveling System Breakaway Clear Clips, 1/16"

Achieve flat, professional tile installations while minimizing lippage with the industry's trusted tile leveling system.

Looking for Faster Tile Installation with Better Results?

The Raimondi Tile Leveling System Breakaway Clear Clips, 1/16" help professional tile installers achieve perfectly aligned tile surfaces while reducing or eliminating lippage. Designed for use with Raimondi wedges and installation pliers, these breakaway clips maintain consistent tile height during the curing process, producing smoother floors and walls with less grinding and rework.

Uneven substrates and slight variations in tile thickness often cause neighboring tiles to settle at different heights after the mortar cures. Raimondi's leveling system keeps adjacent tiles securely aligned throughout installation, helping installers produce flatter surfaces on everything from standard tile to today's large-format porcelain panels.

The system installs quickly, removes easily after curing, and offers an economical alternative to many other tile leveling systems on the market.

What Installers Use Raimondi Breakaway Clips For

• Large-format porcelain tile installation
• Ceramic tile floors
• Wall tile installations
• Stone tile installations
• Bathroom remodels
• Kitchen floors and backsplashes
• Commercial flooring projects
• Lippage prevention during tile installation

Advantages

• Helps eliminate tile lippage
• Produces flatter floor and wall installations
• Speeds up tile installation
• Reduces grinding and finishing after installation
• Simple breakaway design for quick removal
• Compatible with Raimondi wedges and leveling pliers
• Excellent value compared to many competing systems
• Ideal for large-format and standard tile installations

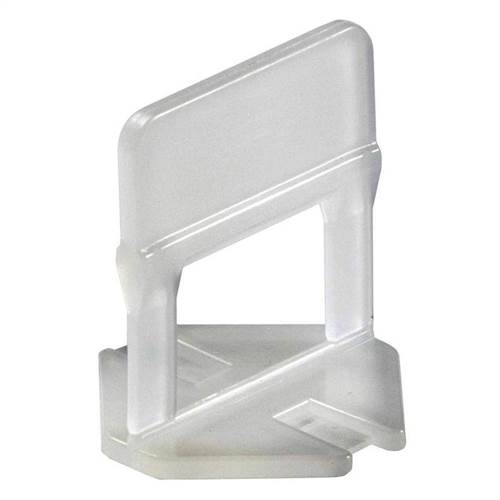

Specifications

• Joint Width: 1/16" (1.5 mm)
• Minimum Tile Thickness: 1/8" (3 mm)
• Maximum Tile Thickness: 1/2" (12 mm)
• Breakaway clear clip design
• Compatible with Raimondi Tile Leveling System wedges

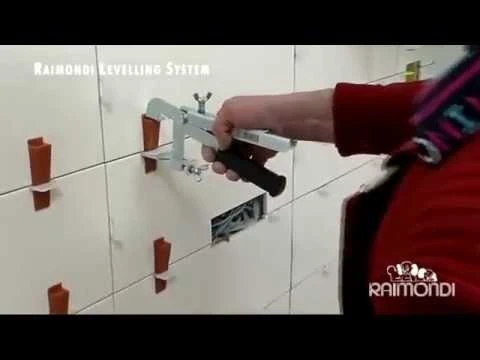

Basic Installation Instructions

1. Set the Support: Spread the adhesive and insert the clip beneath the tile along each edge. Use one or more clips per side depending on tile size.
2. Insert the Wedge: Insert the Raimondi wedge into the clip until the tiles are level. For easier installation, use Raimondi traction-adjustment pliers.
3. Remove the Clip: After the adhesive has cured, remove the exposed portion of the clip by kicking or tapping it parallel to the grout joint with a rubber mallet or using the leveling pliers.

Why Choose Raimondi Tile Leveling System Clips?

Tile lippage can significantly affect the appearance and quality of a finished installation, particularly with today's large-format porcelain and stone tiles. Raimondi Breakaway Clips simplify the installation process by holding adjacent tiles at the same height while the mortar cures, resulting in flatter, more professional surfaces.

The economical clip-and-wedge system is easy to learn, quick to install, and fast to remove after curing. Whether you're installing floors, walls, or decorative tile, Raimondi helps improve installation quality while reducing callbacks and costly rework.

Trusted by professional tile installers worldwide, Raimondi Tile Leveling Systems deliver consistent, reliable results on residential and commercial projects alike.

BB Industries has you covered!

Frequently Asked Questions

What grout joint width are these clips designed for?

These clips create a 1/16-inch (1.5 mm) grout joint.

What tile thicknesses are supported?

The clips accommodate tiles from 1/8 inch (3 mm) up to 1/2 inch (12 mm) thick.

How do the clips help prevent lippage?

When used with Raimondi wedges, the clips keep adjacent tiles at the same height while the adhesive cures, producing a flatter finished surface.

How are the clips removed?

Once the mortar has cured, simply break the exposed portion of the clip parallel to the grout joint using a rubber mallet, your foot, or Raimondi leveling pliers.

Can these clips be used on both floors and walls?

Yes. They are suitable for floor and wall tile installations, including ceramic, porcelain, natural stone, and large-format tile.
