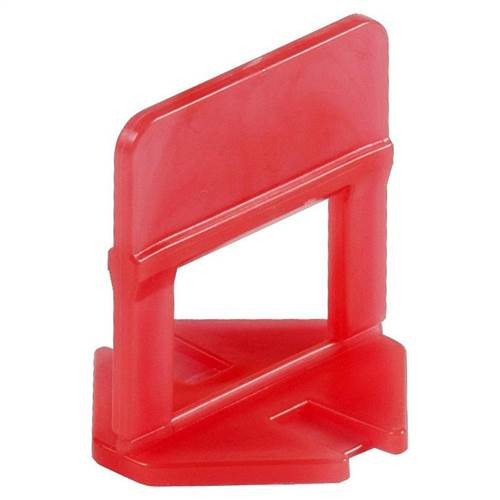

Raimondi Tile Leveling System Breakaway Clips, Bag of 2,000 (LS2000CLIP18)

Raimondi Tile Leveling System Breakaway Clips help maintain consistent tile alignment and reduce lippage during installation. The clips are designed to prevent tiles from shifting in height as the thinset or adhesive cures, making them especially useful when working with uneven floors, ungauged tile, thin tile or large-format tile.

Both installation and removal are quick and easy. Once the adhesive has set, the protruding portion of each clip separates from its base for efficient cleanup.

Features and Benefits

• Helps maintain consistent tile leveling during installation
• Reduces or eliminates grinding required to remove lippage
• Helps prevent height variations as thinset or adhesive cures
• Suitable for floors and walls
• Quick and easy to install and remove
• Designed for use with ungauged, thin and large-format tile
• Bag contains 2,000 breakaway clips

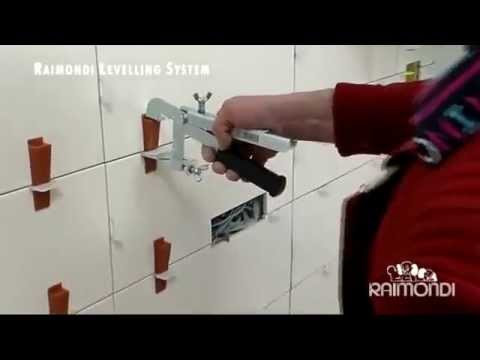

Installation Instructions

Set the Supports

• Spread the adhesive and insert the supports underneath and along all four sides of the tile
• Depending on the tile size, position one or more supports along each side
• Set the tile and tap it into place with a rubber mallet

Insert the Wedges

• Carefully insert a wedge into each support slot without passing the breaking point
• Use traction-adjustment pliers to make insertion easier

Remove the Supports

• After the adhesive sets, separate the protruding portion of each support from its base
• Remove the support using traction-adjustable pliers, a rubber mallet or your foot
• Snap the support parallel to the joint

Specifications

• Product: Raimondi Tile Leveling System Breakaway Clips
• Model: LS2000CLIP18
• Quantity: 2,000 clips per bag
• Minimum Joint Size: 1.5 mm (1/16 in.)
• Compatible Tile Thickness: 3 mm (1/8 in.) to 12 mm (1/2 in.)
• Application: Tile leveling and lippage reduction
