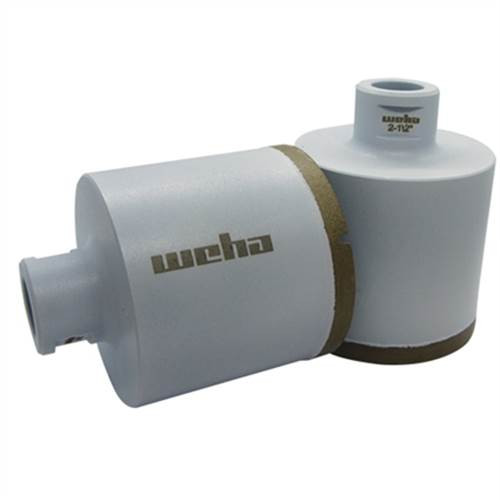

Weha Weramic Wet Porcelain Core Bit, 2-1/2-Inch

The Weha Weramic 2-1/2-Inch Porcelain Core Bit is designed specifically for drilling large-format porcelain panels, ceramic products and ultra-compact sintered stone materials. Listed materials include Dekton, Lapitec, Neolith, Laminam, floor tile and wall tile.

The Weramic core bit features a thin 2 mm rim designed to produce clean, smooth holes while drilling porcelain and ceramic materials.

Typical Applications

• Drilling large-format porcelain panels
• Drilling ultra-compact sintered stone
• Drilling ceramic floor tile
• Drilling ceramic wall tile
• Creating holes in material thicknesses of 6 mm, 8 mm, 10 mm, 12 mm, 20 mm and 30 mm

Compatible Materials

• Dekton
• Lapitec
• Neolith
• Laminam
• Large-format porcelain panels
• Porcelain
• Ceramic
• Floor tile
• Wall tile
• Ultra-compact sintered stone

Advantages

• 2 mm thin-wall rim
• Designed for clean, smooth drilling in porcelain and ceramic materials
• Can be used wet or dry on material up to 6 mm thick
• Wet use required for material thicker than 6 mm
• 5/8-inch-11 thread
• 1-7/8-inch drilling depth

Specifications

• Brand: Weha
• Product line: Weramic
• Product type: Porcelain and ceramic core bit
• Diameter: 2-1/2 inches
• Total length: 3-1/8 inches
• Drilling depth: 1-7/8 inches
• Rim thickness: 2 mm
• Thread: 5/8-inch-11
• Recommended speed: 1,600-2,800 RPM
• Wet or dry use: Material up to 6 mm thick
• Wet-only use: Material thicker than 6 mm

Operating Guidelines

• For material up to 6 mm thick, the supplied product information permits wet or dry drilling.
• For material thicker than 6 mm, use the core bit wet only.
• Recommended operating speed is between 1,600 and 2,800 RPM.

Compatibility Note: Confirm that the 2-1/2-inch diameter, 5/8-inch-11 thread and recommended operating range are compatible with the intended drilling equipment before use.

Frequently Asked Questions

What materials can the Weha Weramic Core Bit drill?

The supplied product information lists Dekton, Lapitec, Neolith, Laminam, large-format porcelain panels, ceramic floor tile, wall tile and other compatible porcelain and ceramic products.

Can this core bit be used dry?

Yes, on material up to 6 mm thick. Material thicker than 6 mm requires wet drilling.

What is the drilling depth?

The listed drilling depth is 1-7/8 inches.

What thread does the core bit use?

It uses a 5/8-inch-11 thread.

What is the recommended operating speed?

The recommended range is 1,600-2,800 RPM.

How thick is the diamond rim?

The rim is 2 mm thick.
