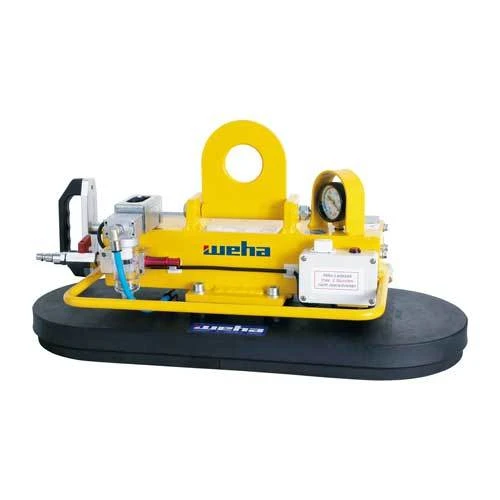

Weha EP600 Unipad Vacuum Lifter & Hand Pump

The Weha EP600 Unipad Vacuum Lifter is designed for lifting granite, marble, engineered stone, quartz, natural stone, glass panels and metal sheets. It can build and maintain vacuum pressure with the included hand-pump system without requiring a compressor or external power source.

The double-acting hand pump creates vacuum during both the push and pull strokes for faster operation. According to the supplied product information, approximately 10 to 15 pumps build pressure in the reservoir, followed by approximately 10 additional pumps to achieve full vacuum after the system is engaged.

Typical Applications

• Horizontal lifting of compatible slabs and panels
• Vertical lifting of compatible slabs and panels
• Handling polished or rough-surface materials
• Moving granite, marble and other natural stone
• Handling engineered stone and quartz
• Handling glass panels and metal sheets

Advantages

• No compressor is required when operating with the hand pump
• Double-acting hand pump creates vacuum on push and pull strokes
• Built-in aluminum safety-vacuum tank
• Non-corrosive aluminum tank construction
• Designed for polished and rough upper surfaces
• Unipad suction system allows fast replacement of vacuum-rubber seals
• Replaceable seals help reduce servicing and maintenance requirements
• Replaceable components support extended equipment use
• According to the supplied product information, the Unipad system creates a strong, tight vacuum seal

Specifications

• Brand: Weha
• Model: EP600
• Product line: Unipad
• Product type: Vacuum lifter with hand pump
• Horizontal load capacity: 1,323 pounds
• Vertical load capacity: 661 pounds
• Suction-plate dimensions: 24 x 10 inches
• Product weight: 40 pounds
• Hand-pump type: Double acting
• Vacuum reservoir: Built-in safety-vacuum tank
• Tank material: Aluminum
• Suction-pad system: Weha New Generation Unipad

Compatible Materials

• Granite
• Marble
• Natural stone
• Engineered stone
• Quartz
• Glass panels
• Metal sheets
• Other compatible polished or rough-surface materials

Operating Information

According to the supplied product information, the double-acting hand pump requires approximately 10 to 15 pumps to build pressure in the tank. After engaging the vacuum, approximately 10 additional pumps are required to reach full vacuum.

On polished granite, the supplied product information states that the EP600 can maintain vacuum for approximately one hour before reaching the safety line. A few additional pump strokes can then restore the vacuum level.

Performance Note: Vacuum retention can vary with the material, surface texture, cleanliness, porosity and condition of the seals. Continuously monitor the vacuum indicator and follow all manufacturer operating instructions.

Important Safety Information

Do not exceed the listed horizontal or vertical load capacity. Inspect the suction pad, rubber seals, vacuum system and lifting equipment before every use.

Confirm that the material surface is compatible, clean and capable of maintaining vacuum. Never position anyone beneath a suspended load, and follow all manufacturer instructions for lifting, handling and vacuum monitoring.

Frequently Asked Questions

What is the horizontal lifting capacity?

The listed horizontal load capacity is 1,323 pounds.

What is the vertical lifting capacity?

The listed vertical load capacity is 661 pounds.

Does the EP600 require an air compressor?

No compressor is required when the lifter is operated with the hand pump.

What size is the suction plate?

The suction plate measures 24 x 10 inches.

How much does the vacuum lifter weigh?

The listed product weight is 40 pounds.

Can it be used on rough surfaces?

According to the supplied product information, the Unipad system is designed for polished and rough upper surfaces. Confirm that the specific material can maintain a secure vacuum before lifting.

Can the rubber seals be replaced?

Yes. The Unipad design allows the vacuum-rubber seals to be changed quickly.

How long does it maintain vacuum on polished granite?

According to the supplied product information, it can maintain vacuum for approximately one hour on polished granite before reaching the safety line. Actual performance depends on the material and operating conditions.
