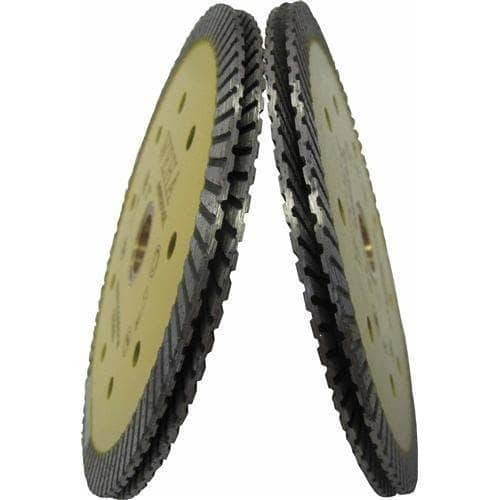

Weha Diamond Turbo Rodding Blades

Professional diamond turbo rodding blades designed to cut clean, consistent channels for 1/8-inch fiberglass and metal reinforcement rods in stone countertops.

Cut Consistent Rodding Channels in Granite, Quartz, Quartzite and Other Stone Surfaces.

Weha Diamond Turbo Rodding Blades are designed for stone fabricators who need to create reinforcement channels in countertops and other stone components. Available in 4-inch and 5-inch sizes, these diamond rodding blades create a 1/4-inch-wide square groove suitable for installing 1/8-inch-thick fiberglass or metal rods.

The blade's specialized construction uses two Weha EB blades separated by a 1/8-inch-thick metal section and welded together. As the blade moves through the stone, this dual-blade configuration removes the material between the cutting sections to produce the required rodding channel in a single cutting path.

A 10 mm diamond segment height provides the cutting surface, while integrated cooling holes support heat management during operation. The blades are designed for wet or dry cutting, giving fabrication shops flexibility based on the material, equipment and working environment.

Typical Applications

• Cutting rodding channels in stone countertops
• Creating grooves for fiberglass reinforcement rods
• Creating grooves for metal reinforcement rods
• Reinforcing countertop sections
• Stone countertop fabrication
• Granite fabrication
• Quartz and engineered stone fabrication
• Quartzite fabrication
• Wet or dry rodding applications

Compatible Materials

• Granite
• Marble
• Engineered stone
• Quartz
• Quartzite
• Concrete
• Stone countertops

Advantages

• Designed specifically for countertop rodding channels
• Turbo-style diamond cutting performance
• Creates a 1/4-inch-wide square groove
• Designed for 1/8-inch-thick fiberglass and metal rods
• Dual-blade construction removes material between the cutting sections
• 10 mm diamond segment height
• Cooling holes support heat management during cutting
• Suitable for wet or dry operation
• Available in 4-inch and 5-inch diameters
• Multiple arbor sizes available
• Suitable for granite, marble, quartz, quartzite, engineered stone and concrete
• Designed for professional stone countertop fabrication

Specifications

• Brand: Weha
• Product Type: Diamond Turbo Rodding Blade
• Available Diameters: 4 Inch and 5 Inch
• Diamond Segment Height: 10 mm
• Groove Width: 1/4 Inch
• Recommended Rod Thickness: 1/8 Inch
• Available Arbor Sizes: 7/8 Inch, 20 mm and 5/8 Inch
• Operating Method: Wet or Dry
• Maximum Listed Speed: 12,200 RPM
• Compatible Rod Types: Fiberglass and Metal
• Compatible Materials: Granite, Marble, Engineered Stone, Quartz, Quartzite, Concrete and Stone Countertops

Blade Construction

The Weha Diamond Turbo Rodding Blade is constructed from two Weha EB blades separated by a 1/8-inch-thick metal section and welded together. This configuration allows the blade to remove the stone between the two cutting sections as it travels through the material, producing a 1/4-inch-wide square channel for countertop reinforcement rods.

Frequently Asked Questions

What are Weha Diamond Turbo Rodding Blades used for?

They are designed to cut reinforcement channels in stone countertops for the installation of fiberglass or metal rods.

What size groove does the Weha rodding blade create?

The blade creates a 1/4-inch-wide square groove.

What size reinforcement rods are these blades designed for?

The groove is designed for 1/8-inch-thick fiberglass or metal reinforcement rods.

What blade sizes are available?

Weha Diamond Turbo Rodding Blades are available in 4-inch and 5-inch diameters.

What materials can the Weha rodding blade cut?

The supplied product information identifies granite, marble, engineered stone, quartz, quartzite, concrete and stone countertops as compatible materials.

Can the Weha Diamond Turbo Rodding Blade be used on quartzite?

Yes. Quartzite is included among the listed compatible materials.

Can the blade be used wet or dry?

Yes. The supplied product information identifies the blade for both wet and dry operation.

What is the diamond segment height?

The blade has a listed diamond segment height of 10 mm.

What arbor sizes are available?

The listed arbor sizes are 7/8 inch, 20 mm and 5/8 inch.

What is the maximum operating speed?

The maximum listed operating speed is 12,200 RPM.

How does the blade create the rodding channel?

The blade uses two cutting sections separated by a 1/8-inch-thick metal section. This construction removes the stone between the blades while cutting, producing the 1/4-inch-wide square groove.

Is a grinder included with the Weha Diamond Turbo Rodding Blade?

No. This product listing is for the diamond rodding blade only.
