Weha Countertop Support Bracket

Heavy-duty 1/4-inch thick countertop support bracket designed to provide strong, discreet support for granite, quartz, quartzite, marble, engineered stone, concrete and other countertop materials.

Strong Countertop Overhang Support Without Traditional Corbels.

The Weha Countertop Support Bracket provides professional countertop installers with a strong, low-profile alternative to traditional decorative corbels. Designed to support stone countertop overhangs while maintaining a clean, modern appearance, these metal support brackets can be used with virtually all types of natural and engineered stone countertops.

Each bracket is manufactured from 1/4-inch thick material to provide a solid, stiff support structure with reduced flex. At 2-1/2 inches wide, the bracket provides substantial support beneath the countertop. When positioned at a stone seam, the width provides approximately 1-1/4 inches of support beneath each adjoining piece.

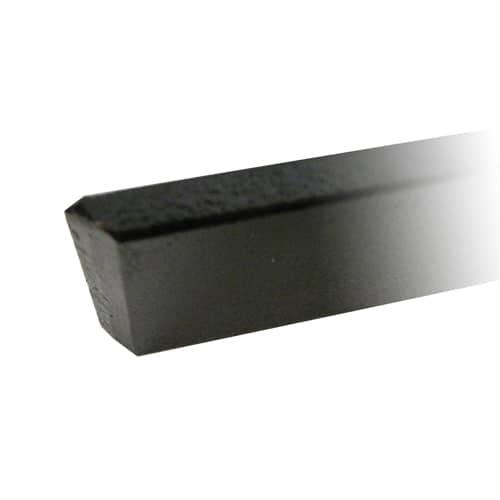

The Weha Countertop Support Bracket features a gloss black powder-coated finish for a clean, finished appearance. One end is flat while the exposed end is back beveled with slightly rounded corners, eliminating sharp edges and creating a smoother visual transition between the bracket and countertop.

Typical Applications

• Supporting countertop overhangs
• Replacing traditional countertop corbels
• Granite countertop installation
• Quartz countertop installation
• Quartzite countertop installation
• Engineered stone countertops
• Marble countertop installation
• Concrete countertops
• Onyx countertops
• Limestone countertops
• Soapstone countertops
• Supporting countertop seams
• Kitchen islands and countertop extensions
• Installations requiring a clean, modern appearance

Compatible Countertop Materials

• Granite
• Quartz
• Quartzite
• Engineered stone
• Concrete
• Onyx
• Marble
• Limestone
• Soapstone
• Other compatible natural and engineered stone materials and substrates

Advantages

• Provides structural support for stone countertop overhangs
• Low-profile alternative to traditional corbels
• 1/4-inch thick construction provides a solid, stiff bracket
• Designed to reduce unwanted flex in countertop support applications
• 2-1/2-inch width provides substantial support beneath the stone
• Provides approximately 1-1/4 inches of support to each piece when positioned beneath a seam
• Six countersunk mounting holes per bracket
• Provided screws install flush with the support brace
• Gloss black powder-coated finish
• Back-beveled exposed end provides a clean transition to the countertop
• Slightly rounded corners help eliminate sharp exposed edges
• Suitable for natural and engineered stone countertops
• Ideal for modern countertop installations requiring discreet support
• Packaged for convenient transport to installation projects

Specifications

• Brand: Weha
• Product Type: Countertop Support Bracket
• Bracket Thickness: 1/4 Inch
• Bracket Width: 2-1/2 Inches
• Mounting Holes: 6 Countersunk Holes Per Bracket
• Finish: Gloss Black Powder Coat
• Edge Design: Flat End with Back-Beveled, Slightly Rounded Exposed End
• Quantity: Set of 3 Brackets
• Included Hardware: Twelve 2-Inch Wood Screws
• Screws Per Bracket: 4
• Primary Application: Supporting Stone Countertop Overhangs
• Compatible Materials: Granite, Quartz, Quartzite, Engineered Stone, Concrete, Onyx, Marble, Limestone and Soapstone

Frequently Asked Questions

What is the Weha Countertop Support Bracket used for?

It is designed to provide structural support beneath stone countertop overhangs while offering a low-profile alternative to traditional corbels.

What countertop materials can the Weha support bracket be used with?

The supplied product information identifies granite, quartz, quartzite, concrete, onyx, marble, limestone, soapstone and engineered stone among the compatible countertop materials.

How thick is the Weha Countertop Support Bracket?

The bracket is 1/4 inch thick. This heavier construction is designed to provide a solid, stiff support brace with less flex than thinner brackets.

How wide is the countertop support bracket?

The bracket measures 2-1/2 inches wide, providing a substantial supporting surface beneath the countertop.

Can the Weha bracket be installed beneath a countertop seam?

Yes. When centered beneath a seam, the 2-1/2-inch width provides approximately 1-1/4 inches of support beneath each adjoining piece of stone.

Can these brackets replace countertop corbels?

Yes. They are designed as a low-profile alternative to traditional corbels for countertop overhang support, making them particularly useful when a clean and modern appearance is desired.

How many mounting holes are in each bracket?

Each countertop support bracket has six countersunk mounting holes.

Are mounting screws included?

Yes. Each set of three brackets includes twelve 2-inch wood screws, providing four screws per bracket.

Do the screws sit flush with the bracket?

Yes. The countersunk mounting holes allow the supplied screws to finish flush with the support brace.

What finish does the Weha Countertop Support Bracket have?

Each bracket has a gloss black powder-coated finish for a clean, finished appearance.

Does the exposed end of the bracket have sharp corners?

The exposed end is back beveled with slightly rounded corners to eliminate sharp edges and provide a smoother transition between the bracket and countertop.

How are the brackets packaged?

The brackets are supplied in sets of three with the included screws. The set is shrink wrapped to help protect the braces from scratches, keep the components together during transport and make it easier for installers to take a complete set to the jobsite.
