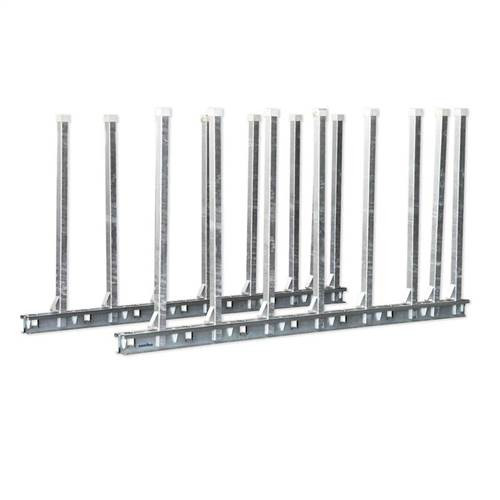

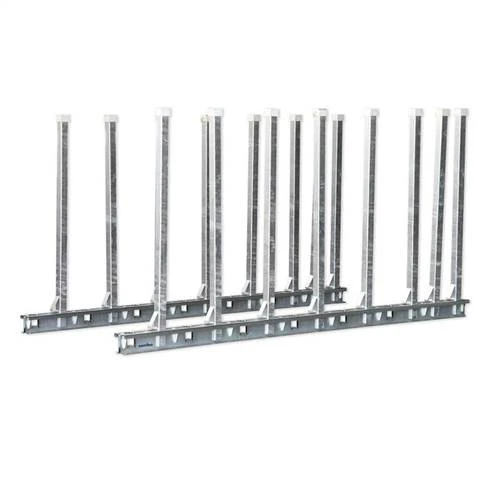

Weha Buffalo Bundle Slab Storage Rack

The Weha Buffalo Bundle Slab Storage Rack is designed for storing bundles of stone slabs in fabrication shops, warehouses and slab-handling facilities. The system includes two 10-foot rails and 16 60-inch poles with a fully hot-dip galvanized finish.

According to the supplied product information, the Buffalo rack's patented six-point post-touch locking system increases contact between the base and post compared with conventional slab-rack designs, helping provide additional structural strength for bundle storage.

Typical Applications

• Storage of granite slabs
• Storage of marble slabs
• Storage of engineered stone and quartz slabs
• Storage of quartzite slabs
• Storage of natural stone slabs
• Storage of 2 cm and 3 cm stone bundles

Six-Point Post-Touch Locking System

The Buffalo rack base is designed with six pressure points where the base contacts each pole. According to the supplied product information, conventional slab-rack bases may contact the pole at only one or two points.

The Buffalo design increases metal-to-metal surface contact from a listed 4-1/2 inches to more than 9-1/2 inches. The supplied product information states that this design increases structural strength by 57%.

Advantages

• Six-point post-touch locking system
• More than 9-1/2 inches of listed metal-to-metal surface contact between base and post
• According to the supplied product information, the design increases structural strength by 57%
• 14 receivers per base
• Receivers spaced 8-1/2 inches on center
• 6 inches from hole to hole
• Anchor holes located at each end of the bases for securing the rack to the floor when required
• Fully hot-dip galvanized poles
• Special lock notches on the poles designed to secure them into the base
• Each pole includes a Weha Signature Safety Angle Bracket
• Each pole includes a white rubber cap
• Galvanized steel construction

Safety Angle Brackets

Each Buffalo pole includes a Weha Signature Safety Angle Bracket. The bracket faces the stone and is designed to help establish the proper slab angle while reducing weight transfer to the poles.

Specifications

• Brand: Weha
• Product: Buffalo Bundle Slab Storage Rack
• Included rails: 2
• Rail length: 10 feet each
• Included poles: 16
• Pole dimensions: 2-3/8 x 2-3/8 x 60 inches
• Pole finish: Fully hot-dip galvanized
• Receivers per base: 14
• Receiver spacing: 8-1/2 inches on center
• Hole spacing listed: 6 inches from hole to hole
• Construction: Galvanized steel
• Post locking system: Six-point post-touch design with lock notches
• Included pole caps: White rubber caps
• Included safety feature: Weha Signature Safety Angle Bracket on each pole

Compatible Slab Materials

• Granite
• Marble
• Engineered stone
• Quartz
• Quartzite
• Natural stone

Manufacturer Claim Note: According to the supplied product information, the Buffalo rack uses a patented design that provides greater base-to-post surface contact and increases structural strength by 57% compared with conventional slab-rack designs.

Important Load & Safety Note: A numerical load capacity was not included in the supplied product information. Confirm the applicable load rating, installation requirements, anchoring requirements and proper slab-storage procedures before placing stone bundles on the rack.

Frequently Asked Questions

What is included with the Weha Buffalo Bundle Slab Storage Rack?

The rack includes two 10-foot rails and 16 60-inch poles. Each pole includes a white rubber cap and Weha Signature Safety Angle Bracket.

What is the six-point post-touch locking system?

The Buffalo base is designed to contact each pole at six pressure points. According to the supplied product information, this increases metal-to-metal contact to more than 9-1/2 inches.

How many receivers are in each base?

Each base has 14 receivers spaced 8-1/2 inches on center.

Can the rack be anchored to the floor?

Yes. Anchor holes are provided at each end of the bases for securing the rack to the floor when required.

What are the pole dimensions?

Each pole measures 2-3/8 x 2-3/8 x 60 inches.

What slab materials can be stored?

The supplied product information lists granite, marble, engineered stone, quartz, quartzite and other natural stone.

What is the rack's weight capacity?

A specific numerical weight capacity was not included in the supplied product information and should be confirmed before use.
