RYE-Corp Husky Bridge Saw

The RYE-Corp Husky Bridge Saw is a direct-drive bridge saw designed for cutting natural stone. It is made in the USA using commonly available components intended to support faster repairs if service is required.

The saw features three-axis control, a rotating tilt table, wireless remote operation and an 18-inch maximum blade capacity. Its blade-tilt system supports 45-degree miter cuts.

Typical Applications

• Cutting natural stone
• Straight bridge-saw cutting
• 45-degree miter cutting
• Angle cutting with the rotating tilt table
• Professional stone fabrication shop use

Advantages

• 20 HP direct-drive saw motor
• Wireless remote with two-speed, three-axis control
• Control of saw motor start, stop and forward cutting from the remote
• Digital readout
• Direct-drive AC inverter-duty motors on all three axes

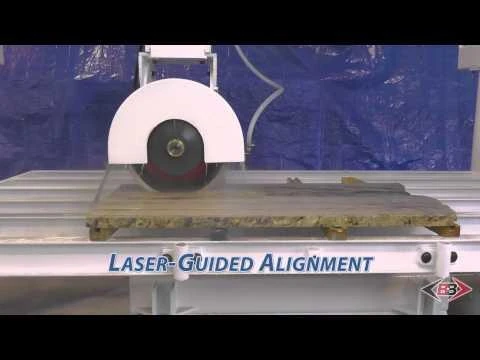

• Alignment laser for positioning material with the blade
• Amp gauge helps determine cutting speed
• Rotating 6 x 10-foot tilt table
• Table stops at 0, 45, 90 and 135 degrees
• Variable-degree table-locking system
• Blade-tilt system supports 45-degree miter cuts
• Automatic water control linked to the spindle motor
• Control panel and wireless remote can be used at the same time
• Made in the USA

Specifications

• Brand: RYE-Corp
• Product: Husky Bridge Saw
• Product type: Direct-drive bridge saw
• Recommended material: Natural stone
• Saw motor: 20 HP
• Power requirement: 220 volts, three phase
• Maximum blade diameter: 18 inches
• Machine dimensions: 15 feet wide x 13 feet deep x 9 feet tall
• Table dimensions: 6 x 10 feet
• Table rotation stops: 0, 45, 90 and 135 degrees
• Vertical movement: 16 inches
• Vertical limit switches: Adjustable
• Axis control: Three axis
• Axis motors: Direct-drive AC inverter duty
• Remote control: Wireless, two speed
• Approximate machine weight: 10,000 pounds
• Country of manufacture: USA

Control and Cutting Features

• Wireless remote controls three-axis movement
• Remote provides saw motor start and stop functions
• Remote supports forward cutting
• Digital readout supports machine positioning
• Alignment laser assists with material and blade alignment
• Amp gauge assists with selecting an appropriate cutting speed
• Water solenoid turns water on and off with the spindle motor

Optional Equipment

• 8-inch touchpad for programming dimensional cuts

The optional touchpad is not identified as included with the standard machine.

Safety Notice

Important: Read and understand the owner's manual before operating the machine to help prevent equipment damage or bodily injury.

Frequently Asked Questions

What size motor does the Husky Bridge Saw use?

It uses a 20 HP, 220-volt, three-phase direct-drive motor.

What is the maximum blade size?

The saw can accommodate blades up to 18 inches in diameter.

Can the saw make miter cuts?

Yes. The blade-tilt system allows 45-degree miter cuts.

What are the tilt table positions?

The rotating table has stops at 0, 45, 90 and 135 degrees, along with a variable-degree locking system.

Can the control panel and wireless remote be used together?

Yes. The supplied product information states that both can be used at the same time.

What are the overall machine dimensions?

The listed dimensions are 15 feet wide, 13 feet deep and 9 feet tall.

How much does the saw weigh?

The saw weighs approximately 10,000 pounds.
