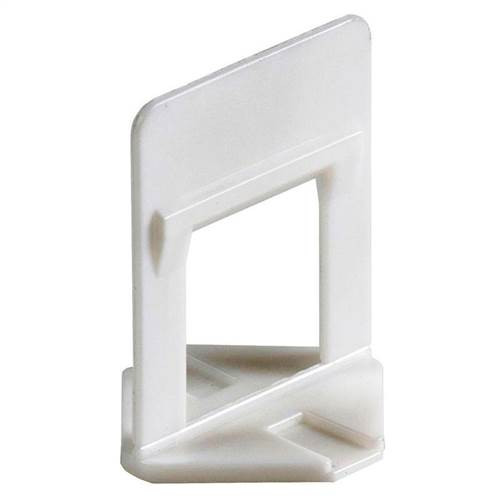

Raimondi Tile Leveling System Breakaway HD Clips, 3/16-Inch, 250 Count, LS250C316HD

Raimondi Breakaway HD Clips are designed to support accurate tile installation and help reduce lippage between adjoining tiles. The leveling clips help maintain consistent positioning while the thinset or adhesive cures, making them suitable for ungauged, thin and large-format tile installations.

These 3/16-inch clips work with Raimondi leveling wedges to hold adjoining tiles in position during installation. Once the adhesive has set, the protruding portion of each clip breaks away from the base for removal.

Typical Applications

• Floor tile installation
• Wall tile installation
• Large-format tile installation
• Ungauged tile installation
• Thin tile installation
• Applications requiring a 3/16-inch joint
• Reducing tile lippage during curing

Advantages

• Helps maintain consistent tile positioning
• Helps reduce lippage between adjoining tiles
• Supports faster tile-setting workflows
• May reduce the need for grinding after installation
• Quick clip placement and removal
• Breakaway design separates after the adhesive sets
• Suitable for floor and wall installations
• Compatible with tile thicknesses from 1/8 inch to 1/2 inch

Specifications

• Brand: Raimondi
• Product type: Tile-leveling breakaway clips
• Clip type: Heavy duty
• Joint size: 3/16 inch
• Quantity: 250 clips
• Product number: LS250C316HD
• Minimum tile thickness: 1/8 inch or 3 mm
• Maximum tile thickness: 1/2 inch or 12 mm
• Installation applications: Floors and walls

Installation Guidelines

Set the Clips

• Spread the adhesive and insert the clips beneath the tile along its sides
• Use one or more clips on each side as needed for the tile size
• Position the adjoining tile and tap it into place with a rubber mallet

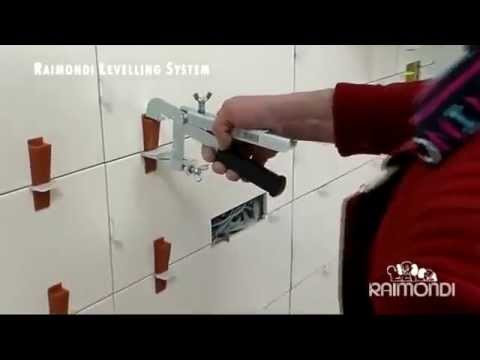

Insert the Wedges

• Insert a leveling wedge into each clip slot
• Do not push the wedge beyond the clip’s breaking point
• Traction-adjustment pliers may be used to assist with installation

Remove the Clips

• Allow the adhesive to set before removing the exposed portion of the clip
• Use traction-adjustment pliers, a rubber mallet or your foot for removal
• Snap the clip in a direction parallel to the joint

Frequently Asked Questions

What joint size do these clips create?

These Raimondi Breakaway HD Clips are designed for a 3/16-inch tile joint.

How many clips are included?

Each package contains 250 clips.

What tile thicknesses are compatible?

The clips are designed for tiles measuring from 1/8 inch to 1/2 inch thick.

Can these clips be used on walls?

Yes. The Raimondi Tile Leveling System can be used for floor and wall tile installations.

How are the clips removed?

After the adhesive sets, snap the protruding portion of each clip parallel to the tile joint using pliers, a rubber mallet or your foot.

Are wedges included?

The supplied product information identifies this package as containing 250 breakaway clips. Wedges and traction-adjustment pliers are referenced as part of the installation process but are not listed as included.
