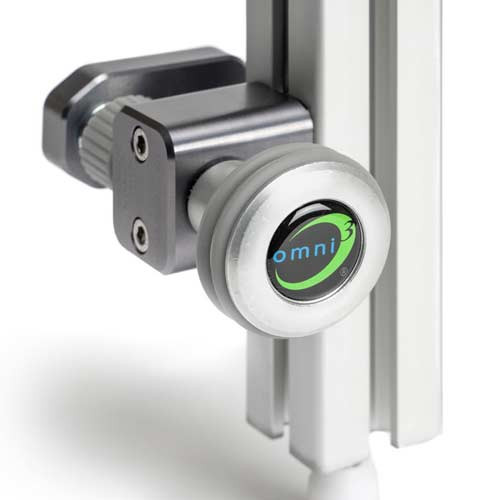

Omni Cubed Waterfall Jack

The Omni Cubed Waterfall Jack is designed to simplify waterfall-edge installations by helping position and hold stone at the desired height and angle while epoxy cures.

Built-in clamps attach to both sides of the waterfall edge, while the top adjustment knobs allow the installer to fine-tune positioning for perpendicular mitered or butt-joint seams. The included Kung Fu Tape helps secure the waterfall piece and tighten the seam during installation.

Typical Applications

• Waterfall-edge countertop installations
• Aligning perpendicular seams
• Mitered waterfall joints
• Butt-joint waterfall installations
• Holding stone in position while epoxy cures

Advantages

• Fine adjustment for perpendicular waterfall seams
• Designed to reduce reliance on shims during installation
• Built-in clamps secure both sides of the waterfall edge
• Rubber bumpers help protect finished edges
• Clamp foot can rotate away to accommodate thicker edges and returns
• Adjustable clamping range from 14 mm to 50 mm
• Included Kung Fu Tape helps secure the waterfall piece and tighten the seam

Specifications

• Brand: Omni Cubed
• Product type: Waterfall-edge installation and lifting tool
• Clamping range: 14-50 mm (0.55-1.97 inches)
• Joint types listed: Mitered and butt joints
• Adjustment method: Top adjustment knobs
• Edge protection: Rubber bumpers on clamps

Included Components

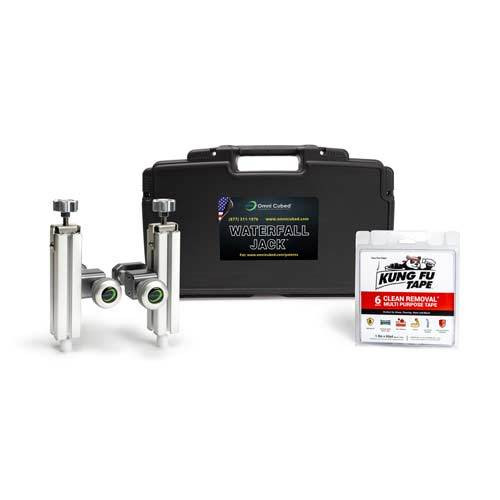

• 2 Waterfall Jack units
• 1 roll of Kung Fu Tape
• Kung Fu Tape roll length: 60 yards

Kung Fu Tape Features

• Designed to secure the waterfall piece and tighten the seam
• Serrated edges for easier tearing
• According to the supplied product information, leaves no residue when removed up to 10 days after application
• Strong and flexible
• Conforms to edges and corners
• Stretchable to help hold seams tight
• Designed for use on natural stone and sensitive materials
• According to the supplied product information, leaves no ghosting or shadows on the material

Operating Information

Attach the built-in clamps to both sides of the waterfall edge, then use the top adjustment knobs to position the stone at the desired height and angle. The tool is designed to hold that position while the epoxy cures.

The included Kung Fu Tape can be used with the Waterfall Jack to help secure the waterfall piece and maintain a tight, even seam.

Compatibility Note: Confirm that the 14-50 mm clamping range is suitable for the intended stone thickness, edge construction and return configuration before use.

Frequently Asked Questions

What is the Omni Cubed Waterfall Jack used for?

It is designed to help position, align and hold waterfall-edge stone during installation while epoxy cures.

What types of seams can it be used with?

The supplied product information lists both mitered and butt-joint waterfall seams.

What is the clamping range?

The listed clamping range is 14-50 mm, or 0.55-1.97 inches.

Can it accommodate thicker edges and returns?

Yes. The clamp foot can be rotated away to accommodate thicker edges and returns.

What is included in the case?

The supplied product information lists two Waterfall Jack units and one 60-yard roll of Kung Fu Tape.

Does the clamp protect finished edges?

Yes. Rubber bumpers are included on the clamps to help protect finished edges.

What does the included Kung Fu Tape do?

It is designed to secure the waterfall piece, tighten the seam and conform around edges and corners during installation.
