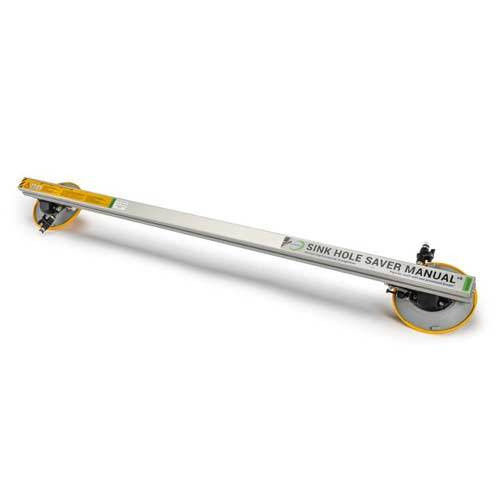

Omni Cubed Sink Hole Saver V6 Manual, 4-Foot (SHS-4M-20)

The Omni Cubed Sink Hole Saver Manual V6 is a surface-mounted reinforcement system designed to strengthen fragile materials during lifting, transportation and installation.

This 4-foot manual model features proprietary 6-inch concave vacuum cups with flexible triple-seal technology. The non-marking cups are designed to provide a reliable hold on smooth, textured, leathered and bowed surfaces.

Typical Applications

• Reinforcing countertops around sink and cooktop cutouts
• Lifting and transporting fragile fabricated materials
• Supporting thin materials
• Handling curved countertops
• Supporting vertical panels
• Handling countertops with high-low drops
• Providing reinforcement during installation

Advantages

• Surface-mounted reinforcement system for fragile materials
• Six non-marking, concave vacuum cups
• Flexible triple-seal cups designed for textured and leathered materials
• Concave cup design supports attachment to bowed surfaces
• Cups can be re-pumped in place without releasing the remaining suction
• Red-collar indicators allow vacuum pressure to be checked at a glance
• High-flow vacuum-release valves support quick removal
• Six fluted knobs allow the cups to be repositioned around cutouts
• According to the supplied product information, preventing one break may offset the cost of the system

Specifications

• Brand: Omni Cubed
• Product line: Sink Hole Saver V6
• Model number: SHS-4M-20
• Product type: Manual surface-mounted reinforcement system
• Length: 4 feet
• Operation: Manual vacuum pumps
• Vacuum-cup diameter: 6 inches
• Vacuum-cup design: Concave
• Vacuum-cup seal: Flexible triple seal
• Vacuum-cup finish: Non-marking
• Vacuum-pressure indicator: Red-collar indicator
• Vacuum release: High-flow release valves
• Repositioning controls: Six fluted knobs
• Available product-line lengths: 4 feet and 7 feet

Available Accessories

• Angle Bracket
• Vertical Lifting Handle Kit
• Horizontal Lifting Handle Kit
• Rigid Cross-Brace Kit
• Extension Bracket

Accessory Note: The listed accessories are available separately and are not identified as included with this Sink Hole Saver.

Frequently Asked Questions

What is the Sink Hole Saver V6 used for?

It is designed to reinforce fragile materials during lifting, transportation and installation, particularly around sink and other countertop cutouts.

How long is this model?

This manual model measures 4 feet long.

Can the vacuum cups attach to textured surfaces?

Yes. The flexible triple-seal cups are designed to provide a reliable hold on textured and leathered materials.

Can the vacuum cups be re-pumped while attached?

Yes. The cups can be re-pumped in place without releasing the remaining suction.

How is vacuum pressure monitored?

Red-collar indicators on the thumb pumps allow the vacuum pressure to be checked visually.

Can the cup positions be adjusted around a cutout?

Yes. Six fluted knobs allow the cups to be repositioned around cutouts.

Are lifting handles or angle brackets included?

No. The listed handle kits, angle bracket, cross-brace kit and extension bracket are available accessories and are not identified as included.
