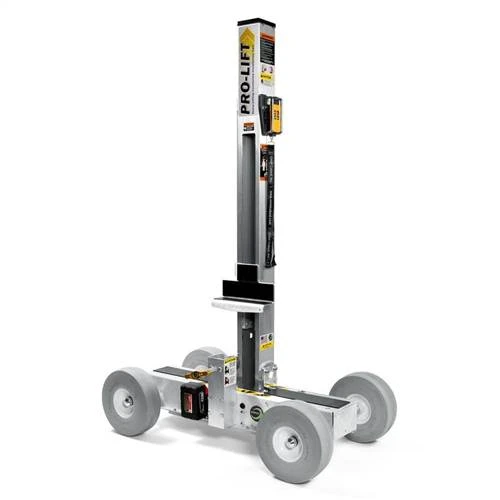

Omni Cubed Pro-Lift Automatic Heavy-Lifting Installation Cart

The Omni Cubed Pro-Lift Automatic Installation Cart is designed to assist with transporting, lifting, lowering and positioning large stone countertops. According to the supplied product information, it helps reduce physical strain and injury risk while improving installation efficiency.

The powered lift elevates stone up to 45 inches from the ground to the support rail and provides controlled tilting for final countertop placement. Its aluminum frame supports loads up to 1,000 pounds while keeping the cart's weight to 74 pounds.

Typical Applications

• Transporting large stone countertops
• Moving fabricated pieces around the shop
• Moving countertops at installation locations
• Raising and lowering stone
• Controlled tilting during countertop installation
• Assisting with final countertop placement
• Unloading large fabricated pieces

Advantages

• Designed to reduce physical strain and injury risk
• Helps crews accomplish more with fewer people
• Raises, lowers and transports large stone pieces
• Controlled tilt supports easier countertop installation
• Wireless remote allows operators to position themselves around the material
• Engineered for stability and maneuverability
• Raises stone up to 45 inches from the ground to the support rail
• Strong, lightweight aluminum frame
• 10-inch shock-absorbing, non-marking and flat-free tires
• Integrated level, stone clamp and kickbrake
• Integrated remote-storage cage
• Commonly used with the Aqua-Jaw Carry Vise for additional material control

Specifications

• Brand: Omni Cubed
• Product line: Pro-Lift Automatic
• Product type: Powered countertop installation cart
• Listed load capacity: 1,000 pounds
• Cart weight: 74 pounds
• Maximum lift height: 45 inches from ground to support rail
• Clamp opening: 4.5 inches
• Metric clamp opening: 115 mm
• Power source: 28V rechargeable lithium-ion tool battery
• Controls: Wireless remote
• Frame material: Aluminum
• Tire diameter: 10 inches
• Tire type: Non-marking, flat-free and shock absorbing
• Movement functions: Lift, lower, roll and controlled tilt

Integrated Features

• Wireless remote control
• Remote-storage cage
• Stone clamp
• Level
• Kickbrake
• Powered lifting system
• Controlled tilting system

Important Safety Information

Safety Warning: Although the Pro-Lift Automatic has a listed capacity of 1,000 pounds, very tall or heavy pieces may become unstable. Use extreme care to maintain control and stability.

Read and understand all warnings, cautions and operating instructions before using the Pro-Lift Automatic.

Frequently Asked Questions

What is the Pro-Lift Automatic used for?

It is designed to transport, raise, lower, tilt and position large stone countertops during fabrication and installation.

What is the listed load capacity?

The listed load capacity is 1,000 pounds.

How high can the cart lift stone?

It can raise stone up to 45 inches from the ground to the support rail.

How is the cart controlled?

The powered lifting system is operated with a wireless remote.

What is the clamp opening?

The clamp opening is 4.5 inches, or 115 mm.

What type of battery powers the cart?

It is powered by a 28V rechargeable lithium-ion tool battery.

What type of tires does the cart use?

It uses 10-inch non-marking, flat-free and shock-absorbing tires.

Is the Aqua-Jaw Carry Vise included?

No. The supplied product information states that the Pro-Lift is commonly used with the Aqua-Jaw Carry Vise, but it is not identified as included.
