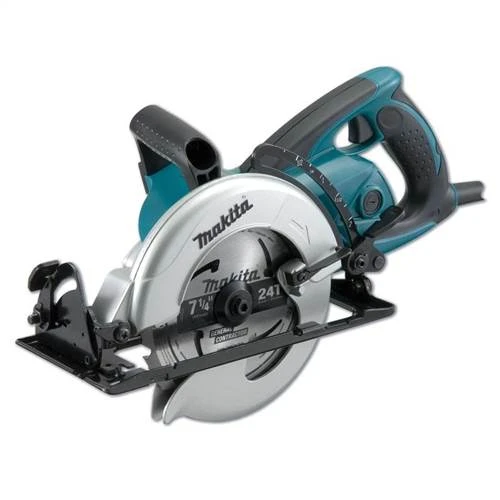

Makita 5477NB 7-1/4-Inch Hypoid Saw

The Makita 5477NB 7-1/4-Inch Hypoid Saw combines a powerful 15-amp motor with efficient hypoid gears for consistent power and cutting performance. Ball-bearing construction supports increased productivity, while the oversized top handle and rubberized grip provide improved comfort and control.

Makita's hypoid gears provide greater surface contact than conventional worm-drive gears. Oil-bath technology, a sealed gear housing and heat-treated gears are designed to reduce maintenance and support long-lasting performance.

The saw offers a bevel range from 0° to 51.5°, with positive stops at 45° and 51.5°. Large adjustment levers, clearly marked depth and bevel scales and a push-button spindle lock simplify setup and blade changes.

Typical Applications

• Framing and construction work
• Truss and rafter cutouts
• Bevel cuts
• Narrow cuts
• Stone fabrication applications
• Work performed by builders, masons and contractors

Advantages

• Powerful 15-amp motor
• Hypoid gears provide greater surface contact than conventional worm-drive gears
• Oil-bath technology and sealed gear housing help reduce maintenance
• Heat-treated hypoid gears support long-lasting performance
• Bevel capacity from 0° to 51.5°
• Positive bevel stops at 45° and 51.5°
• Large cutting capacity
• Lower guard design supports bevel and narrow cuts
• Oversized top handle for added comfort
• Large levers for quick bevel and depth adjustments
• Push-button spindle lock simplifies blade changes
• Blade wrench stores on the saw
• Rubberized grip provides improved control
• Chemically treated base plate resists rust and warping
• Reinforced 10-foot power cord
• Large, easy-to-read depth and bevel markings
• Externally accessible brushes simplify replacement
• Includes a 24-tooth thin-kerf carbide-tipped blade

Specifications

• Brand: Makita
• Model: 5477NB
• Product type: Hypoid saw
• Blade diameter: 7-1/4 inches
• Motor: 15 amps
• Gear type: Hypoid
• Bevel capacity: 0° to 51.5°
• Positive bevel stops: 45° and 51.5°
• Maximum cutting capacity at 90°: 2-3/8 inches
• Maximum cutting capacity at 45°: 1-3/4 inches
• Maximum cutting capacity at 50°: 1-9/16 inches
• Power cord length: 10 feet
• Included blade: 24-tooth thin-kerf carbide-tipped blade
• Blade-change feature: Push-button spindle lock
• Blade wrench storage: Attached to the saw

Equipment Included

• Makita 5477NB 7-1/4-Inch Hypoid Saw
• 24-tooth thin-kerf carbide-tipped blade
• Blade wrench

Frequently Asked Questions

What size blade does the Makita 5477NB use?

The saw uses a 7-1/4-inch blade.

What is the bevel capacity?

The saw provides a bevel range from 0° to 51.5°, with positive stops at 45° and 51.5°.

What is the maximum cutting depth at 90°?

The maximum cutting capacity at 90° is 2-3/8 inches.

How does the saw simplify blade changes?

It includes a push-button spindle lock and a blade wrench that stores on the saw.

What blade is included?

A 24-tooth thin-kerf carbide-tipped blade is included.

What helps reduce maintenance on the gear system?

The saw uses oil-bath technology and a sealed gear housing designed to reduce maintenance.
