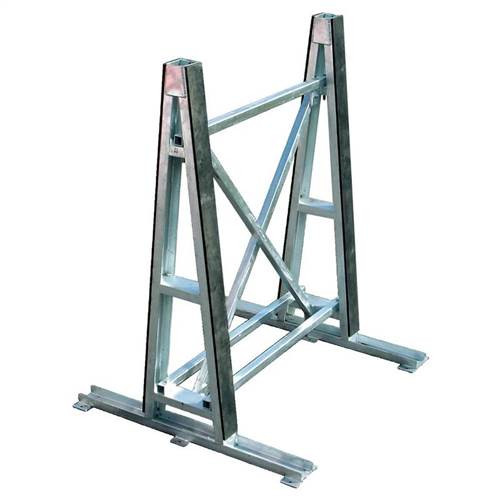

Groves Truck-Mounted A-Frame, 530-Pound, Model TMA-6078

The Groves TMA-6078 Truck-Mounted A-Frame is designed for transporting material on a truck or trailer. It provides a total capacity of 24,000 pounds, with a maximum capacity of 12,000 pounds per side.

Six mounting plates allow the A-frame to be bolted to a truck or trailer. Rubber-lined uprights help protect material from scratches, while removable X-braces and cross braces bolt together for transport and reduced shipping requirements.

Typical Applications

• Transporting material on a truck
• Transporting material on a trailer
• Securing material on both sides of an A-frame

Advantages

• 24,000-pound total capacity
• 12,000-pound capacity per side
• Six mounting plates for bolting the A-frame to a truck or trailer
• Rubber-lined uprights help prevent scratches
• Removable X-braces and cross braces
• Braces bolt together for easier transport
• Galvanized finish
• 13-inch shelves on each side of the A-frame

Specifications

• Brand: Groves
• Model: TMA-6078
• Product type: Truck-mounted A-frame
• Overall dimensions: 60 x 48 x 78 inches
• Product weight: 530 pounds
• Total capacity: 24,000 pounds
• Capacity per side: 12,000 pounds
• Shelf depth: 13 inches on each side
• Mounting plates: Six
• Bottom U-channel width: 4 inches
• U-channel side ledges: 2 inches
• Support lumber compatibility: 4 x 4 lumber
• Support lumber included: No
• Uprights: Rubber lined
• Bracing: Removable X-braces and cross braces
• Finish: Galvanized
• Availability: Non-stock item
• Shipping: Ships from the vendor
• Listed lead time: 10 days
• Freight note: Additional freight charges may apply

Installation Information

• Bolt the six mounting plates to a compatible truck or trailer
• Install customer-supplied 4 x 4 lumber in the bottom U-channel to support the load
• Secure the removable X-braces and cross braces with the supplied bolted configuration

Frequently Asked Questions

What is the A-frame's total capacity?

The total listed capacity is 24,000 pounds, with a maximum of 12,000 pounds per side.

How is the A-frame secured to a truck or trailer?

It includes six mounting plates designed for bolting the A-frame to a truck or trailer.

Is the support lumber included?

No. The customer must provide the 4 x 4 lumber used in the bottom U-channel.

How does the A-frame help protect material?

The uprights are lined with rubber to help prevent scratches.

What are the A-frame's dimensions?

The listed dimensions are 60 x 48 x 78 inches, with 13-inch shelves on each side.

Is this a stocked item?

No. It is identified as a non-stock item that ships from the vendor with a listed 10-day lead time. Additional freight charges may apply.
