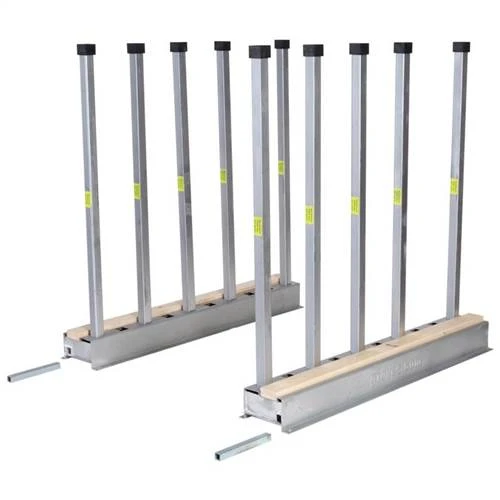

Groves Slab Bundle Rack, 5-Foot Overall Length

The patented Groves Slab Bundle Rack is designed for storing natural stone slabs, fabricated parts and cutoffs. Each opening has a maximum capacity of 6,000 pounds when the load is evenly distributed between the two posts.

The slotted rails accommodate protective 2 x 4 lumber, while square tube posts with rubber caps separate bundles and slabs. An included connector tube allows multiple rails to be aligned in a straight line to create the desired rack length.

Typical Applications

• Storing standard-size stone slabs
• Storing oversized stone slabs
• Separating slab bundles
• Storing fabricated stone parts and cutoffs
• Creating extended storage runs by connecting multiple rails

Advantages

• 6,000-pound maximum capacity per opening
• 3,000-pound maximum load per post when evenly distributed
• Rail slots accommodate protective 2 x 4 lumber
• Included 11-inch connector tube allows rails to be aligned in a straight line
• Ten 2-inch square post holes spaced 4 inches apart
• Internal steel plate reinforces the rail openings
• 2-inch square tube posts separate bundles and slabs
• 2-inch square rubber post caps help protect stored material
• Heavy-duty powder-coated finish

Specifications

• Brand: Groves
• Product type: Slab bundle storage rack
• Overall length: 5 feet
• Maximum capacity per opening: 6,000 pounds
• Maximum capacity per post: 3,000 pounds when evenly distributed
• Rail post holes: Ten 2-inch square holes
• Hole spacing: 4 inches apart
• Post size: 2-inch square tube
• Post caps: 2-inch square rubber caps
• Connector tube length: 11 inches
• Finish: Heavy-duty powder coated
• Protective lumber compatibility: 2 x 4 lumber
• Protective lumber included: No

Safety Guidelines

Safety Warning: Do not exceed 6,000 pounds per opening or 3,000 pounds per post. Loads must be evenly distributed.

• Maintain a minimum 2-degree angle when placing stone between the posts
• Inspect the posts before each use
• Do not exceed the listed capacity

Installation Note

When assembled, the post height above the top of the rail is 5.5 inches less than the listed post length. For example, a 60-inch post extends 54.5 inches above the top of the rail.

Frequently Asked Questions

What is the maximum capacity of each rack opening?

Each opening has a maximum capacity of 6,000 pounds, or 3,000 pounds per post when the load is evenly distributed.

Are protective 2 x 4 boards included?

No. The rails are designed to hold 2 x 4 lumber, but the lumber is not included.

Can multiple rack rails be connected?

Yes. An 11-inch connector tube is included for aligning rails in a straight line to create the desired storage length.

How many post positions does the rail have?

The rail has ten 2-inch square holes spaced 4 inches apart.

How should slabs be positioned in the rack?

The supplied product information requires a minimum 2-degree angle when placing stone between the posts.

How tall are the posts after installation?

The installed height above the rail is 5.5 inches less than the listed post length.
