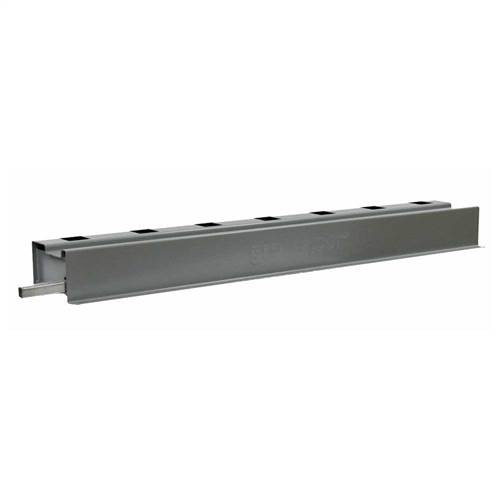

Groves Heavy-Duty Outside Rail with Wood Slot, Model BR2.5

The Groves BR2.5 Heavy-Duty Outside Rail is designed for slab bundle storage systems. Its top surface includes 2.5-inch square post holes spaced 5 inches apart, while slots in the rail accommodate 2 x 4 lumber.

A reinforced steel plate with matching holes is welded and boxed inside the rail, 1 inch above the bottom. An included 11-inch connector tube allows multiple rails to be aligned in a straight line.

Advantages

• Heavy-duty powder-coated finish
• Rail slots accommodate 2 x 4 lumber
• 2.5-inch square post holes
• Post holes spaced 5 inches apart
• Internal steel plate reinforces the rail openings
• Included connector tube allows rails to be aligned in a straight line
• Maximum capacity of 9,000 pounds per bundle

Specifications

• Brand: Groves
• Model: BR2.5
• Product type: Heavy-duty outside rail
• Post-hole size: 2.5 inches square
• Post-hole spacing: 5 inches apart
• Internal reinforcement: Steel plate with matching holes
• Steel plate position: 1 inch above the bottom of the rail
• Wood-slot compatibility: 2 x 4 lumber
• Connector tube length: 11 inches
• Floor-securing holes: 1/2 inch
• Finish: Heavy-duty powder coated
• Maximum weight per bundle: 9,000 pounds
• Maximum weight per post: 4,500 pounds

Installation Guidelines

• Use the 1/2-inch holes in the bottom flange to secure the rail to the floor
• Use the included 11-inch connector tube to align multiple rails in a straight line
• The usable post height after assembly is 5.5 inches less than the listed post length

For example, a 72-inch post extends 66.5 inches above the top of the outside rail after assembly.

Safety Guidelines

Safety Warning: Secure the rail to the floor using the 1/2-inch holes located in the bottom flange.

• Do not exceed 9,000 pounds per bundle
• Do not exceed 4,500 pounds per post

Frequently Asked Questions

What size post holes are built into the rail?

The rail has 2.5-inch square post holes spaced 5 inches apart.

Can the rail hold protective lumber?

Yes. The rail includes slots designed to hold 2 x 4 lumber.

Can multiple rails be connected?

Yes. An 11-inch connector tube is included for aligning rails in a straight line.

How should the rail be secured?

Use the 1/2-inch holes in the bottom flange to secure the rail to the floor.

What is the maximum weight capacity?

The maximum listed capacity is 9,000 pounds per bundle or 4,500 pounds per post.

How is the usable post height calculated?

The usable post height above the rail is 5.5 inches less than the listed post length.
