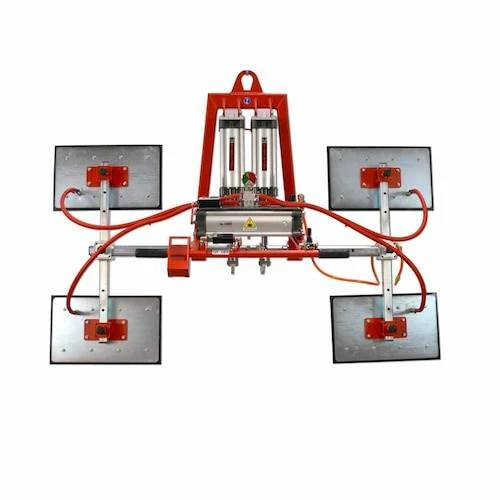

Elephant Multi-Position Air-Powered Vacuum Lifter, 2,200 Lbs.

The Elephant Multi-Position Air-Powered Vacuum Lifter provides a practical solution for carefully lifting and handling natural stone slabs. Designed for mounting on gantry, bridge, and mobile cranes, the lifter features shop-friendly controls and a powered tilting structure that moves from 0° to 90° and locks in the horizontal position.

A continuous vacuum pump powered by compressed air works with adjustable suction pads, an aluminum vacuum tank, and a color-coded vacuum gauge for easier monitoring. The handle incorporates gripping, release, and tilting controls along with a holder for the push-button control unit.

Founded in 1979, Elephant has more than 40 years of experience developing material-lifting and handling solutions for industrial and artisanal applications. More than 70,000 Elephant lifting and handling systems have been deployed worldwide.

Advantages

• Powered 0°–90° tilting structure that locks in the horizontal position
• Continuous vacuum pump powered by compressed air
• Graduated, color-coded vacuum gauge for easier vacuum monitoring
• Powerful, quiet vacuum generators with reduced air consumption
• High-limit yielding steel suction pads made from first-quality materials
• Rapid adjustment system for the suction pads
• Sliding valve with safety device
• Automatic alarm system
• Gripping, release, and tilting controls located on the handle
• Push-button control unit holder located on the handle

Specifications

• Brand: Elephant
• Product: Multi-Position Air-Powered Vacuum Lifter
• Lifting Capacity: 2,200 lbs.
• Application: Lifting and handling natural stone slabs
• Mounting Compatibility: Gantry, bridge, and mobile cranes
• Tilting Range: 0°–90° powered tilting
• Power Source: Compressed air
• Air Consumption: 100 L/min
• Operating Pressure: 4–6 bar
• Vacuum Tank: Aluminum
• Suction Pads: Adjustable, high-limit yielding steel
