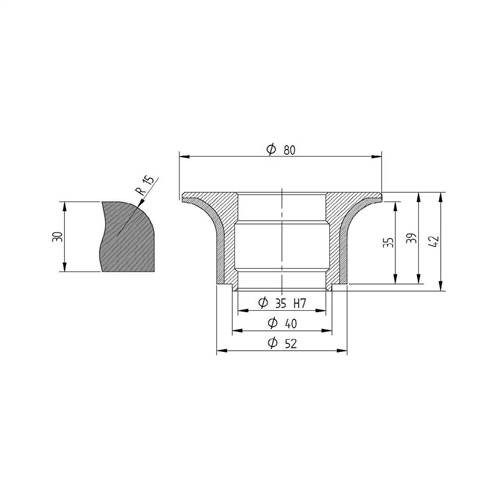

Diamut A35 R15 - Pos 5S, OD 80 x 35 Bore, HYS Continuous Diamond Profile Wheel

The Diamut A35 R15 HYS Continuous Diamond Profile Wheel is a Position 5S CNC profiling wheel. According to the supplied product information, the 5S diamond uses an ultra-fine metal design intended to produce a smooth edge before polishing, help reduce visible CNC machining lines and improve polisher life.

Advantages

• Position 5S ultra-fine diamond
• Designed to produce a smooth edge before polishing
• Designed to help reduce visible CNC machining lines
• According to the supplied product information, designed to improve polisher life
• Precisely machined for precision and speed
• Tooling manufactured in-house by Diamut
• EDM by Diamut
• Made in Italy

Specifications

• Brand: Diamut
• Profile: A35 R15
• Position: 5S
• Product type: Continuous diamond profile wheel
• Series designation: HYS
• OD / bore designation: 80 x 35
• Diamond type: Ultra-fine metal
• Country of manufacture: Italy

Position 5S Information

The supplied product information describes the 5S diamond as an ultra-fine metal position designed to leave the edge as smooth as possible before polishing. It is intended to help hide machining lines created during CNC processing and support longer polisher life.

The 5S diamond is stated to be available across all offered Diamut profiles.

Product-Line Information

The supplied body copy also describes Diamut HYS2 Hyper Speed Solution tooling, FLX sets and DLG7 polishers. These details relate to the broader Diamut tooling system and are not all specifically confirmed for this A35 R15 Position 5S wheel.

• HYS2 Hyper Speed Solution tooling is described as being designed to increase CNC feed rates, with advertised speeds up to 12,700 mm/min or 500 inches/min.
• FLX sets are described as rounding the top and bottom of slabs just shy of true 2 cm, 3 cm and 4 cm, with a 45° exit angle.
• DLG7 polishers are described as using an updated resin matrix with an approximate break-in period of 50 to 100 linear feet and operation up to 2,570 mm/min or 100 inches/min.
• Diamut tooling is available in 20 mm, 40 mm, 60 mm, 80 mm, 100 mm and 120 mm series.

Product Information Note: The exact operating RPM, feed rate, compatible CNC machines, wet or dry operating requirements and material compatibility for this specific A35 R15 Position 5S wheel were not included in the supplied product information. The HYS2, FLX and DLG7 performance information above should not be assumed to be the operating specification for this exact wheel.

Compatibility Note: Confirm the wheel dimensions, bore configuration, CNC compatibility and operating parameters before use.

Frequently Asked Questions

What position is this Diamut profile wheel?

This listing identifies the wheel as Position 5S.

What profile is listed?

The listed profile is A35 R15.

What does the 5S diamond do?

According to the supplied product information, the ultra-fine 5S metal diamond is designed to create a smoother edge before polishing and help reduce visible CNC machining lines.

What is the listed OD and bore designation?

The product title lists an OD / bore designation of 80 x 35. Additional dimensional clarification was not supplied.

Where is Diamut tooling made?

The supplied product information states that it is made in Italy.

What operating speed should be used with this wheel?

A specific operating RPM or feed rate for this exact Position 5S wheel was not provided and should be confirmed before use.
