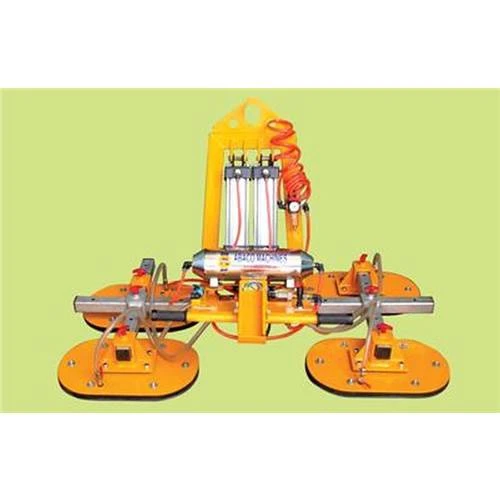

Abaco 100 Stone Vacuum Lifter, 4 Vacuum Cups (SVL100)

The Abaco 100 Stone Vacuum Lifter, model SVL100, is the largest lifter in the supplied Abaco Stone Vacuum Lifter family. It is designed for lifting, moving and installing large stone slabs and is equipped with four vacuum cups for handling heavier slabs.

The SVL100 provides an inclination range from 0 to 90 degrees and requires 11 PSI (0.7-0.8 bar) of air pressure for operation. According to the supplied product information, many commonly available compressors can provide the required pressure without the need for a generator.

Typical Applications

• Lifting large stone slabs
• Moving stone slabs
• Installing large stone slabs
• Handling heavier slab applications
• Tilting slabs from 0 to 90 degrees

Advantages

• Designed for lifting, moving and installing large-size slabs
• 4 vacuum cups
• Maximum safe lifting capacity of 2,200 lbs.
• Inclination range from 0 to 90 degrees
• Rubber suction pads help protect slabs from scratching
• Vacuum suction is designed to help maintain slab stability during lifting
• Requires 11 PSI (0.7-0.8 bar) of operating air pressure
• According to the supplied product information, does not require a generator

Specifications

• Brand: Abaco
• Product: Abaco 100 Stone Vacuum Lifter
• Model: SVL100
• Product type: Stone vacuum lifter
• Vacuum cups: 4
• Minimum slab dimensions: 52 x 28-3/8 inches
• Inclination range: 0-90 degrees
• Maximum safe lifting capacity: 2,200 lbs.
• Required air pressure: 11 PSI (0.7-0.8 bar)
• Suction pad material: Rubber

Operating Requirements

The supplied product information specifies an operating air pressure requirement of 11 PSI (0.7-0.8 bar). According to the provided manufacturer information, many commonly available compressors can supply the required pressure.

Important Load & Safety Note

The supplied product information lists a maximum safe lifting capacity of 2,200 lbs. for the SVL100 and minimum slab dimensions of 52 x 28-3/8 inches. Do not exceed the rated lifting capacity. Confirm that the slab dimensions, surface condition and vacuum-cup contact areas are appropriate before lifting.

Operating Notice: Read and understand the owner's manual before operating the vacuum lifter to help prevent equipment damage or bodily injury.

Product-Line Information

The supplied information also identifies two additional Abaco Stone Vacuum Lifters:

• Abaco 25, model SVL25: 1 vacuum cup, minimum stone dimensions of 24-3/8 x 16-3/8 inches, 0-90 degree inclination and maximum lifting capacity of 550 lbs.
• Abaco 50, model SVL50: 2 vacuum cups, minimum stone dimensions of 44-1/8 x 24-3/8 inches, 0-90 degree inclination and maximum lifting capability of slightly over 1,100 lbs.

Product Information Note: The specifications above for the Abaco 25 and Abaco 50 apply to other models in the product family and not to this SVL100 listing.

Frequently Asked Questions

How many vacuum cups does the Abaco SVL100 have?

The SVL100 is equipped with four vacuum cups.

What is the maximum safe lifting capacity?

The supplied product information lists a maximum safe lifting capacity of 2,200 lbs.

What are the minimum slab dimensions?

The minimum listed slab dimensions are 52 x 28-3/8 inches.

Can the lifter tilt the slab?

Yes. The supplied product information lists an inclination range from 0 to 90 degrees.

How much air pressure does the SVL100 require?

The listed operating requirement is 11 PSI, or 0.7-0.8 bar.

Does the lifter require a generator?

According to the supplied product information, no generator is required. The lifter operates using compressed air.

Do the vacuum cups help protect the slab surface?

Yes. The supplied product information states that the rubber suction pads help protect the slab from scratching.

How does the SVL100 compare with the other listed Abaco vacuum lifters?

The supplied product information identifies the SVL100 as the largest model in this family, with four vacuum cups and a maximum safe lifting capacity of 2,200 lbs.
